Gas Burners
SUBURBAN · RV WATER HEATER PARTS
Suburban Gas Burners
3 Suburban gas burners for RV water heaters. Spiders and rust block the burner tube.
✓ FIT CHECK
Not sure which part fits? Send us your model and serial number from the data plate and we’ll confirm it before you order.
Shop by part number

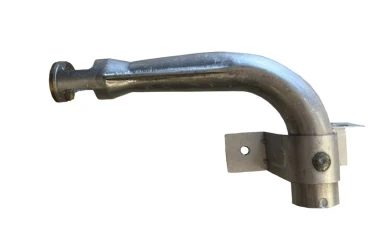

Part # 11030011030 Burner Assembly →Fits SW6D, SW6DE, SW6DEL, SW10D +13 more

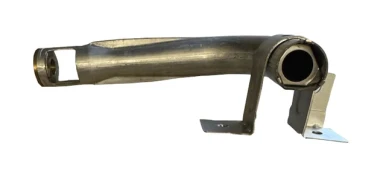

Part # 525023Burner with Orifice – SW-Series Water Heaters →Fits SW6P, SW6D, SW6DE, SW6DEL +11 more
Part # 010844Burner Assembly with Orifice, 3 and 4 Gallon →Fits SW4P, SW4DWhich gas burner fits my water heater?
| Part # | Fits these models |
|---|---|
| 11030 | SW6D, SW6DE, SW6DEL, SW10D, SW10DE, SW10DEL, SW12D, SW12DE +9 |
| 525023 | SW6P, SW6D, SW6DE, SW6DEL, SW10P, SW10D, SW10DE, SW10DEL +7 |
| 010844 | SW4P, SW4D |
Not listed? Send us your model and serial number.
Signs it’s time to replace
- Yellow, lazy flame or soot on the door
- Flame lifts off or roars
- Rusted-through burner tube
Tip: Clean the burner tube with a bottle brush before buying. Spider webs are the top cause.
Related parts (these are not gas burners): Burner, Bracket and Electrode Assembly 011126, Burner Bracket 063444, Burner Mounting Bracket 063827.
Common questions
Which gas burner fits my Suburban water heater?
Find your model in the table above, or match the part number printed on your old part. Several parts changed at serial number breaks, so send us your model and serial number if you are unsure.
