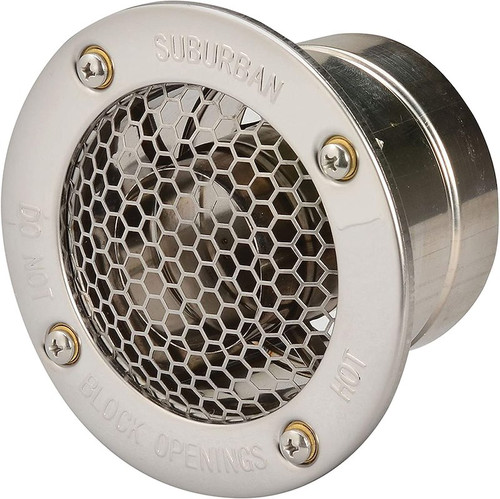

Suburban 261617 Water Heater Vent Cap – 2 Inch

The Suburban 261617 Vent Cap is an OEM exterior exhaust vent designed for select Suburban tankless / on-demand RV water heaters installed in RV sidewalls measuring approximately 1 to 2 inches thick. It provides the proper exterior termination for the water heater’s combustion exhaust system and is an important part of a safe, complete installation.

The 261617 is the 2-inch vent version in Suburban’s vent-cap family and is commonly used with the Suburban IW60 Nautilus / Advantage on-demand water heater.

Models It Fits

The Suburban 261617 is used with:

• Suburban IW60 Nautilus On-Demand Water Heater

• Suburban Advantage Tankless / Continuous Water Heater

• Select Suburban tankless installations requiring a vent for approximately 1"–2" RV wall thickness

Wall Thickness Fitment

Suburban offers different vent-cap lengths based on the thickness of the RV sidewall:

• 261616 – for approximately 0" to 1" wall thickness

• 261617 – for approximately 1" to 2" wall thickness

• 261618 – for approximately 2" to 3" wall thickness

The correct vent length is important because the exhaust system must terminate properly through the RV exterior wall.

What the 261617 Vent Cap Does

The 261617 passes through the RV sidewall and provides the exterior termination point for combustion gases produced by the water heater.

Because Suburban tankless water heaters use a sealed combustion/exhaust system, the vent cap must match the wall thickness of the installation to ensure proper fit and venting.

Signs You May Need a Replacement Vent Cap

A replacement vent cap may be needed if the existing vent is:

• Bent or damaged

• Corroded

• Missing

• Improperly sized for the RV wall

• Damaged during water heater removal

• Being replaced during installation of a Suburban tankless water heater

• Too short or too long for the RV sidewall thickness

Estimated Install Time

Approximately 15–30 minutes, depending on access and whether the water heater or exterior panel is already removed.

Tools Required

• Screwdriver

• Basic hand tools

• Tape measure

• Appropriate RV exterior sealant

Installation Notes

Before ordering, measure the actual thickness of the RV sidewall at the water heater opening.

The 261617 is intended for walls approximately 1 to 2 inches thick. If your wall is thinner or thicker, use the appropriate alternate Suburban vent cap.

Make sure the vent cap is installed and sealed according to Suburban’s installation requirements to help prevent water intrusion and ensure proper exhaust venting.

Product Specifications

Manufacturer: Suburban / Airxcel
Part Number: 261617
Part Type: Water Heater Exhaust Vent / Vent Cap
Vent Length: 2 Inch
Wall Thickness: Approximately 1"–2"
Application: Select Suburban Tankless / On-Demand RV Water Heaters
Common Model: IW60 Nautilus / Advantage Tankless

Important: The 261617 is selected by RV wall thickness. For approximately 0"–1" walls use 261616; for approximately 2"–3" walls use 261618.
